• Headlamps, Xenon, High-Intensity Discharge (HID), windshield wiper-activated with Twilight Sentinel, cornering lamps and night time flash-to-pass feature (If equipped with (JL4) StabiliTrak, the cornering lamps automatically activate on sharp turns.)
• Headlamps, Intellibeam, automatic low/high beam control
• Fog lamps, front, integral in front fascia
• Daytime Running Lamps
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators
• Glass, Solar-Ray light-tinted
• Glass, laminated front-side, theft-deterrent
• Glass, laminated rear-side, theft-deterrent
• Wipers, front intermittent, Generation II RainSense with structureless wiper blades
• Windshield washer fluid system, heated
• Lamps, LED backup
• Lamp, LED center high-mounted stop/brake (CHMSL)

• Seats, front bucket with leather seating surfaces, floor shift, 8-way power driver and passenger seat adjusters with articulating outboard head restraints (Includes 4-way articulating outboard head restraints.)
• Seats, heated and cooled driver and front passenger (Not available with 292 or 293 Midnight Blue interior.)
• Seats, heated rear outboard seating positions with perforated rear seat inserts. Front seat inserts are non-perforated unless option (KB6) heated and cooled driver and front passenger seats is ordered. (Includes (AQY) rear seat height-adjustable headrests and (ARC) 4-way power rear lumbar control. Not available with 292 or 293 Midnight Blue interior.)
• Seat adjusters, driver and front passenger 4-way power lumbar control with massaging feature
• Seat adjusters, rear 4-way power lumbar control (Not available with 292 or 293 Midnight Blue interior.)
• Head rests, rear seat, height-adjustable (Not available with 292 or 293 Midnight Blue interior.)
• Seat, rear pass-through
• Armrest, rear center with dual cup holders and storage
• Console, center with storage bin, storage tray, dual cup holders, coin holder and armrest
• Floor mats, carpeted front and rear
• Steering wheel, Deluxe, leather-wrapped with wood accents, heated (Not available with (K59) Adaptive Cruise Control.)
• Wood trim, Dark Burled Walnut
• Steering column, Tilt-Wheel, adjustable
• Steering column, without column shifter (floor shift) (Requires (AQ9) front bucket seats with leather seating surfaces.)
• Steering column, power tilt and telescopic, includes memory position for 2 driver presets and an easy exit feature
• Instrumentation, analog with speedometer, tachometer, fuel gauge, coolant temperature and Driver Information Center
• Fuel gauge, analog
• Memory Package, recalls 2 driver "presets" for 8-way power driver seat and outside mirrors (Also includes recall for power tilt and telescopic steering column.)
• Parking assist, front and rear, Ultrasonic with rearview LED light bar and audible warning
• Tire Pressure Monitor
• OnStar, 1-year of Directions & Connections Service. Includes the innovative easy to use Turn-by-Turn Navigation services which provide voice-guided directions (where available). Also includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist, Remote Horn and Lights, Information and Convenience Services, and Driving Directions (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and Remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Turn-By-Turn Navigation requires ABS and is not available in certain areas. Visit onstar.com or call 1-888-466-7827 for system limitations and details.)
• Windows, power with front and rear Express-Down, front Express-Up and rear passenger lockout
• Door locks, power programmable with lockout protection
• Cruise control, electronic with set and resume speed
• Trunk release, power, includes valet lockout, located in glovebox
• Fuel filler door release, push/push
• Remote Keyless Entry, with Adaptive Remote Start, panic button, trunk release and door locks
• Adaptive Remote Start, included with Remote Keyless Entry
• Universal Home Remote, includes garage door opener, 3-channel programmable
• Lighting, illuminated entry
• Theft-deterrent system, vehicle, PASS-Key III
• Retained accessory power, power windows and audio system remain operational after ignition is switched off for 10 minutes or until a door is opened
• Climate control, tri-zone automatic with individual climate settings for driver, right-front passenger and rear passengers, dual-zone front and auxiliary rear air/heat control and an air filtration system
• Defogger, rear-window electric with front and side window outlets for the driver and right-front passenger
• Audio system, AM/FM stereo with MP3 compatible 6-disc in-dash CD changer, seek-and-scan, digital clock, auto-tone control and Radio Data System (RDS) and 8 speakers (Includes (UQA) Bose premium 8-speaker system.)
• Audio system feature, Bose premium 8-speaker system
• XM Satellite Radio. With a wide variety of programming, XM has something to excite any driver. Whether you want to be entertained or informed, to laugh, think, or sing, XM has the perfect channel for you - coast-to-coast, and in digital-quality sound. 3 trial months - no obligation. (Available in the 48 contiguous United States. Required $12.95 monthly subscription sold separately. All fees and programming subject to change. Subscription subject to customer agreement. For more information, visit gm.xmradio.com.)
• Antenna, integral front and rear
• Antenna, Quad Band with XM Satellite Radio
• Mirror, inside rearview auto-dimming with compass display and OnStar controls
• Lighting, LED interior with rear reading lights
• Map pockets, front doors and front seatbacks
• Visors, driver and front passenger illuminated vanity mirrors
• Visors, rear illuminated vanity mirrors, located in headliner just above the rear outboard seating passengers heads, dimmable (Not available with (CF5) power sunroof.)
• Sunshade, rear window, power
• Cargo net, trunk
• Trunk mat

• Brakes, 4-wheel antilock, 4-wheel disc
• Air bags, dual-stage frontal and side-impact, driver and right-front passenger and head curtain side-impact, front and rear outboard seating positions with Passenger Sensing System. (Head curtain air bags are designed to help reduce the risk of head and neck injuries to front and outboard rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Safety belts, 3-point, driver and right-front passenger, lap belt only on center front seat
• Safety belts, 3-point, rear, all seating positions with outboard comfort guides
• Door locks, rear child security
• Daytime Running Lamps

ENGINE, NORTHSTAR 4.6L DOHC V8 ($0)

• (275 HP [205 kW] @ 6000 rpm
• 295 lb-ft of torque [400 N-m] @ 4400 rpm) (STD)

• 1SD DTS LUXURY II PREFERRED EQUIPMENT GROUP Includes standard equipment
• ENGINE NORTHSTAR 4.6L DOHC V8 (275 HP [205 kW] @ 6000 rpm 295 lb-ft of torque [400 N-m] @ 4400 rpm) (STD)
• EXTRA COST PAINT
• TEHAMA FULL LEATHER SEATS WITH MINI PERFORATED INSERTS
• SEATS FRONT BUCKET WITH LEATHER SEATING SURFACES FLOOR SHIFT 8-way power driver and passenger seat adjusters with articulating outboard head restraints (STD)
• NUANCE LEATHER SEATING SURFACES WITH MINI PERFORATED SEAT INSERTS
• AUDIO SYSTEM WITH NAVIGATION AM/FM STEREO with DVD-based navigation voice recognition and 8 speakers. Also includes 2 free map updates.
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED WITH OVERDRIVE HYDRA-MATIC 4T80-E (STD)
• Front Wheel Drive
• Traction Control
• Traction Control
• Stability Control
• Brake Assist
• Air Suspension
• Tires - Front Performance
• Tires - Rear Performance
• Chrome Wheels
• Temporary Spare Tire
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Traction Control
• Stability Control
• Brake Assist
• HID headlights
• Automatic Headlights
• Fog Lamps
• Daytime Running Lights
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Rain Sensing Wipers
• Power Driver Seat
• Power Passenger Seat
• Leather Seats
• Bucket Seats
• Heated Rear Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Pass-Through Rear Seat
• Floor Mats
• Leather Steering Wheel
• Heated Steering Wheel
• Woodgrain Interior Trim
• Adjustable Steering Wheel
• Adjustable Steering Wheel
• Tire Pressure Monitor
• Trip Computer
• Mirror Memory
• Seat Memory
• Rear Parking Aid
• Tire Pressure Monitor
• Telematics
• Navigation from Telematics
• Requires Subscription
• Power Windows
• Power Door Locks
• Cruise Control
• Remote Trunk Release
• Keyless Entry
• Power Door Locks
• Remote Trunk Release
• Remote Engine Start
• Remote Engine Start
• Universal Garage Door Opener
• Immobilizer
• Climate Control
• Multi-Zone A/C
• A/C
• Rear A/C
• Rear Defrost
• AM/FM Stereo
• CD Changer
• Premium Sound System
• Premium Sound System
• Satellite Radio
• Requires Subscription
• Auto-Dimming Rearview Mirror
• Rear Reading Lamps
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• ABS
• 4-Wheel Disc Brakes
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Child Safety Locks
• Traction Control
• Daytime Running Lights

• Vehicle
• EPA Classification: Full Size
• Mileage
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 25
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): 4009
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Independent
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QCH
• Rear Tire Order Code: QCH
• Front Tire Size: P235/55SR17
• Rear Tire Size: P235/55SR17
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 17 x 7
• Rear Wheel Size (in): 17 x 7
• Spare Wheel Size (in): Compact
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), Overall: - TBD -
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 18
• Exterior Dimensions
• Wheelbase (in): 115.6
• Length, Overall (in): 207.6
• Width, Max w/o mirrors (in): 74.8
• Height, Overall (in): 57.6
• Track Width, Front (in): 62.6
• Track Width, Rear (in): 62.2
• Min Ground Clearance (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Trunk Volume (ft³): 18.8
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): - TBD -
• Front Head Room (in): 38.3
• Front Leg Room (in): 42.5
• Front Shoulder Room (in): 60.0
• Front Hip Room (in): 57.3
• Second Head Room (in): 38.4
• Second Leg Room (in): 42.0
• Second Shoulder Room (in): 59.2
• Second Hip Room (in): 55.7
• Summary

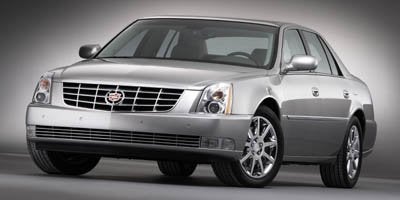

• Vehicle Name: Cadillac DTS
• Body Style: 4 Door Sedan
